Loader Attachments

john deere mg20f mechanical grapple

MG20F MECHANICAL GRAPPLE

  • Mid-upper and mid-lower tine sections welded in and are standard base equipment
  • Easily attaches to Quick-Change loader carrier
  • 1200 lb. lift capacity
john deere ab13 bale spear

AB13 BALE SPEAR

  • Quick and easy attachment
  • Replaceable tines
  • Rugged tubular frame enhances durability
  • See brochure for loader series compatibility
john deere ab14 bale spear

AB14 BALE SPEAR

  • Quick, easy connection
  • Rugged, tubular frame
  • Replaceable spears for extended implement life
john deere ab13e bale spear

AB13E BALE SPEAR

  • Quick and easy attachment
  • Replaceable tines
  • Rugged tubular frame enhances durability
john deere ab12e bale spear

AB12E BALE SPEAR

  • Quick and easy attachment
  • Replaceable tines
  • Rugged tubular frame enhances durability
john deere ay11f 4 in 1 buckets

AY11F 4 IN 1 BUCKETS

  • Strong frame for added durability
  • Quick and easy attachment
  • Serrated edge for secure movement
  • Strong hinges for increased life
  • See brochure for loader series compatibility
john deere av20h root grapple

AV20H ROOT GRAPPLE

  • Quick and easy connection
  • Replaceable, weld-on wear tips
john deere av20f root grapple

AV20F ROOT GRAPPLE

  • Quick and easy connection
  • Replaceable, weld-on wear tips
john deere av20e root grapple

AV20E ROOT GRAPPLE

  • Quick and easy connection
  • Replaceable, weld-on wear tips
john deere ar10e rock buckets

AR10E ROCK BUCKETS

  • Quick and easy connection
john deere ap12f pallet fork

AP12F PALLET FORK

  • High tensile, heavy-gauge steel frame
  • Tine position is adjustable. No tools required
john deere ap11 pallet forks

AP11 PALLET FORKS

  • High tensile, heavy-gauge steel frame
  • Tines float while picking up and removing pallets on uneven terrain
  • Tines can be made rigid at any position using set screws
john deere ap10 pallet forks

AP10 PALLET FORKS

  • High tensile, heavy-gauge steel frame
  • Tines float while picking up and removing pallets on uneven terrain
  • Tines can be made rigid at any position using set screws
  • See brochure for loader series compatibility
john deere af11e series

AF11E SERIES

  • Reversible cutting edges
  • Quick and easy attachment
  • Heavy-duty frame
  • Optional hydraulic angle adjustment
john deere af10f front blades

AF10F FRONT BLADES

  • Reversible cutting edges
  • Trip-edge protection
  • Optional skid shoes
  • Optional hydraulic angle adjustment unit available for AF10 (F)
john deere ad11 debris grapples

AD11 DEBRIS GRAPPLES

  • Heavy-duty grapples
  • Quick, easy attachment
john deere ab11 bale spear

AB11 BALE SPEAR

  • Quick and easy attachment
  • Replaceable tines
  • Rugged tubular frame enhances durability

John Deere Front Loader Attachments

Front loader attachments turn a tractor loader into a pallet mover, a bale handler, a brush clearer or a snow blade. They connect to the loader's attachment carrier with a quick-attach system, so one loader can take on many jobs around the farm or property.

Many of these attachments are part of the Frontier line from John Deere. Koenig Equipment sells and supports them across Ohio and Indiana, and our team can confirm which version fits your loader before you buy.

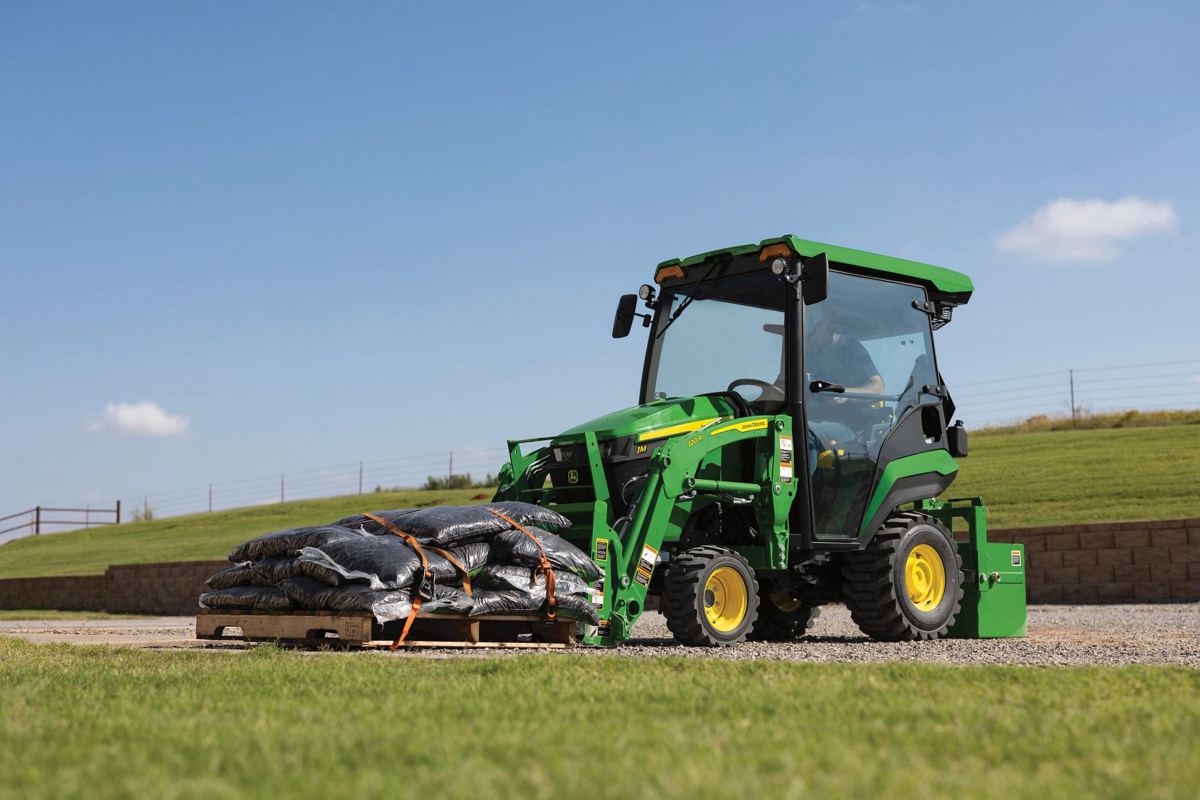

A John Deere compact tractor uses a front-end loader with pallet forks to move a pallet of bags

Which Loader Attachment Do You Need?

Start with the job, then match the attachment to your loader. Each attachment page lists the loader series or attachment carrier it is built for.

Attachment Best for Models on this page Key specs
Bale spears Moving round and square bales AB11, AB12E, AB13, AB13E, AB14 One round bale up to 2,000 lb (AB11, AB12E) or 2,500 lb (AB13, AB13E). The AB14 carries two round bales smaller than 6 ft or one large square bale, up to 2,000 lb.
Pallet forks Pallets, feed, fencing and building materials AP10, AP11, AP12F AP10: 1,250 lb with 36 in. tines. AP11: 2,000 lb. AP10 and AP11 tines float on uneven ground.
Root grapples Brush, roots, rocks and debris AV20E, AV20F, AV20H AV20F and AV20H: 53 in. wide with a 36 in. opening. AV20E: 62 in. wide with a 50 in. opening.
Mechanical grapple Brush, logs and posts without a third hydraulic function MG20F 1,200 lb lift capacity, clamps material from 7.5 to 27 in. in diameter
Debris grapple Heavy debris cleanup AD11 72 in. wide with a 34.5 in. clam opening
4-in-1 bucket Grabbing and moving loose or bulky material AY11F 53 in. cutting width, 32 in. clam opening
Rock bucket Picking up rocks while soil falls through AR10E 75 in. cutting width, tines spaced 2 or 3 in. apart
Front blades Snow and light grading AF10F, AF11E Reversible cutting edges, optional hydraulic angle. AF10F: 59.6 in. wide with trip-edge protection.

Most attachment pages show our current price, and you can request a quote on any of them or ask our team to confirm the fit for your tractor and loader.

Sales, Service and Parts From the Same Team

Tines, wear tips, cutting edges and hydraulic hoses take a beating. Genuine replacement parts for your loader and attachments are stocked at your Koenig store, and you can also order them anytime on Koenig Marketplace. Our parts teams can look up the right part by model if you are not sure what you need.

Schedule service for your loader or tractor, or ask the store nearest you about pickup and delivery.

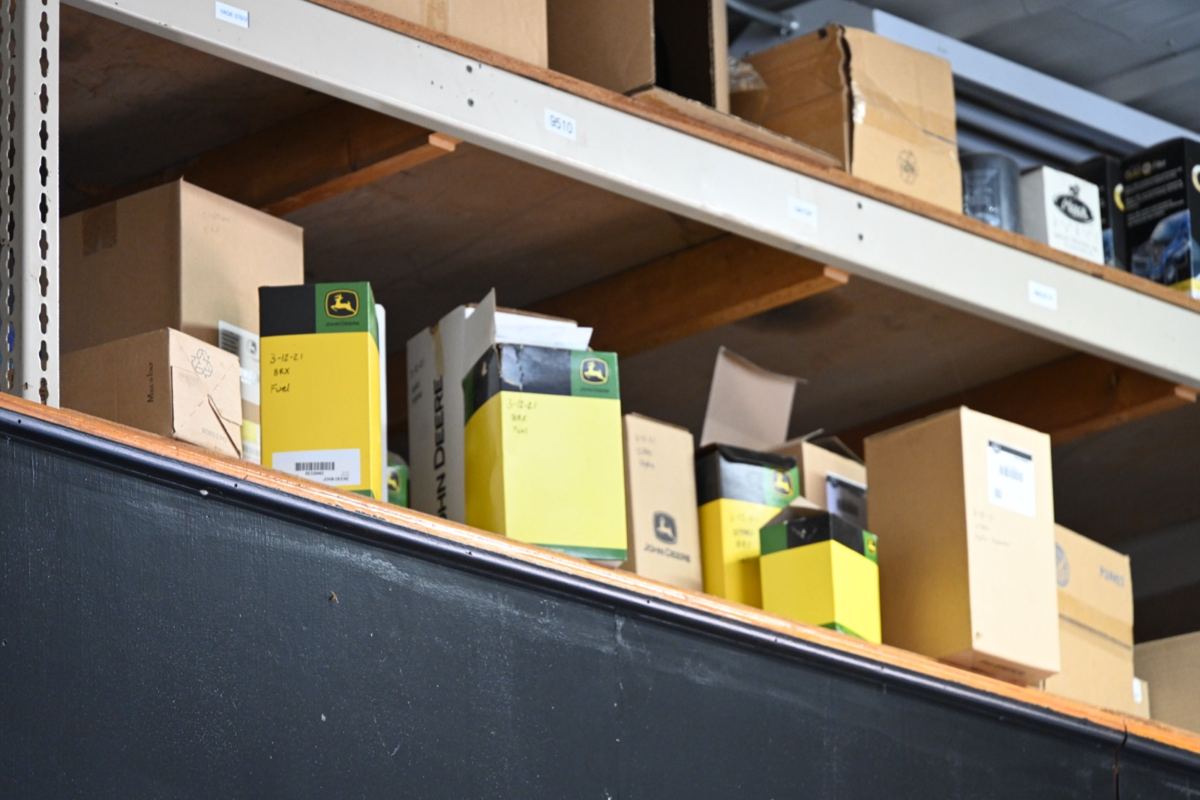

Warehouse shelves stocked with various cardboard boxes, including many John Deere parts boxes

Need a Loader, Skid Steer Attachments or Used Tools?

Shopping for the loader itself? See John Deere tractor front end loaders. For skid steers and compact track loaders, browse John Deere compact construction attachments. Looking for a deal? Browse used compact tractor attachments for sale at Koenig, updated as units come in.

Front Loader Attachment FAQs

Will this attachment fit my John Deere loader?
Each attachment is built for a specific loader series or attachment carrier, such as quick-change carriers on 100, 200 and 300 Series loaders or the global carrier. Some, like the AB13 bale spear, come in several versions for different loaders. Bring your tractor and loader model and our team will confirm the right version.

Do I need third-function hydraulics to run a grapple?
Hydraulic grapples and 4-in-1 buckets use hydraulic cylinders, so they need a hydraulic connection at the loader to open and close. The MG20F mechanical grapple is the exception: it opens and closes with the bucket cylinders, so no third function is needed.

How much can John Deere pallet forks lift?
The AP10 is rated for 1,250 lb with 36 in. tines and the AP11 for 2,000 lb. Always stay within your loader's rated lift capacity as well.

What are the most useful attachments for a compact tractor loader?
It depends on your work. Pallet forks move materials, a grapple handles brush and debris, a bale spear moves hay, and a front blade clears snow. Our team can help you choose based on the jobs you do most.

Do you sell used loader attachments?
Yes. Browse used compact tractor attachments, updated as units come in.
